Authorized Wallace & Tiernan Distributor in
Mexico and Colombia
Our presence in Mexico and Colombia allows us to offer specialized technical support and reliable solutions for various water treatment processes and industrial applications.
Products

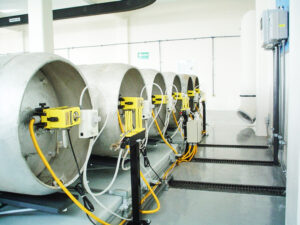

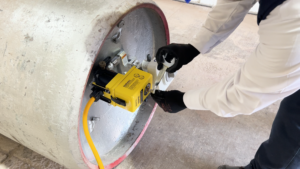

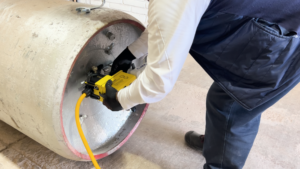

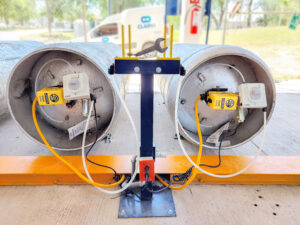

The HALOGEN automatic valve closure system for chlorine cylinders and containers can control the sequential closure of up to six Eclipse electric actuators that act directly on the valves of chlorine containers during an emergency shutdown.
Capacity: Up to 2000 kg.
Carbon steel platform with epoxy coating.
Capacity: Up to 100 kg per scale.
Corrosion-resistant PVC platforms.
Cylinders for chlorine gas service with a filling capacity of 68 kg are designed to store this chemical safely throughout the supply chain.
Our 10CL150 cylinder model is designed according to DOT-3AA with a working pressure of 480 psi (DOT-3AA-480 standard).
Shipping throughout Mexico with immediate delivery.
Cylinders for chlorine gas service with a filling capacity of 68 kg are designed to store this chemical safely throughout the supply chain. Our 10CL150 cylinder model is designed in accordance with DOT-3AA with a working pressure of 480 psi (DOT-3AA-480 standard).
Cylinders designed to safely contain 907 kg of chlorine gas throughout the supply chain. They are rigorously inspected at more than 20 stages of manufacture. The superior fusion welding process is used for all joints (including head-to-body joints), full-penetration groove fusion welding (CJP) of longitudinal and circumferential seams, with post-weld heat treatment at 1130°F for 60 minutes (manufacturing methodologies far superior to forge welding), as well as angle welding techniques.

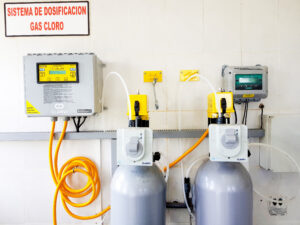

The S10k™ chlorinator operates under vacuum (negative pressure) and is regulated by a control unit with a V-Notch™ knob, which provides highly accurate chlorine gas dosing.
The automatic version of the S10k chlorinator is mounted on a panel next to an electric positioner that receives a 4-20 mA signal from a SCADA system and/or from an electronic residual free chlorine and/or proportional flow controller. It has a 5-inch rotameter and a capacity of up to 10 kg/h (500 lb/day) of chlorine gas.
-Absorbs and neutralizes environments contaminated with corrosive vapors or gases.
-Make three horizontal passes through the packed medium with caustic solution sprayed.
-Manual operation, continuous and/or automatic start-up with chlorine sensors.
-Design adapted for land transport or sea container.
-Made from highly resistant and durable materials.
-Digital indicator with 2-line backlit LCD display and graphic bar.
-Flexible settings: pounds, kilograms, and total percentage.
-Output signals: 4-20 mA, up to 4 relays.
-Independent load cell.
-NEMA 4X protection
The V10k chlorine gas dosing control unit is an efficient measuring system up to 750 ppd with a robust and high-precision design ideal for water disinfection processes.
The V10k chlorine gas dosing control unit is an efficient measuring system up to 750 ppd with a robust and high-precision design ideal for water disinfection processes.
The V2000 chlorine gas dosing control unit is an efficient measuring system for up to 10,000 ppd with a robust, high-precision design ideal for water disinfection processes.
The V2000 chlorine gas dosing control unit is an efficient measuring system for up to 10,000 ppd with a robust, high-precision design ideal for water disinfection processes.
The WALLACE & TIERNAN model 510S automatic changeover vacuum regulator valve is the safest way to dispense chlorine gas from containers, achieving total extraction and maximum use of chlorine in water disinfection processes, while also ensuring continuous operation.
Spare Parts
Wallace & Tiernan is a global leader in chlorination systems and chlorine gas dosing for drinking water, wastewater, and industrial applications.
Wallace & Tiernan is a global leader in chlorination systems and chlorine gas dosing for drinking water, wastewater, and industrial applications.
Optimize your chlorination system infrastructure with Wallace & Tiernan’s innovative technology, through specialized training in the safe handling of chlorine gas and the prevention of operational risks. Learn more about our three safety levels: vacuum extraction systems, automatic shut-off actuators, and chlorine gas leak absorption and neutralization systems, designed to ensure continuous and safe operation for the community.
Training provided by certified trainers holding a DC5 certificate, including a DC3 certificate endorsed by the Ministry of Labor and Social Welfare (STPS)
